In the realm of roofing materials, standing seam metal roofs have risen above the rest of metal roofing types.

Unlike traditional roofing materials such as asphalt shingles or clay tiles, standing seam metal roofs offer a unique combination of strength, longevity, and design flexibility.

Their distinct appearance, characterized by raised seams running vertically along the roof’s surface, creates a modern and sophisticated aesthetic that enhances the curb appeal of any structure.

The beauty of standing seam metal roofs extends far beyond their visual appeal. Their robust construction and exceptional performance in various weather conditions make them a formidable choice.

Standing seam metal roofs are not only appealing but also functional and durable roofing options.

What is a Standing Seam Metal Roof?

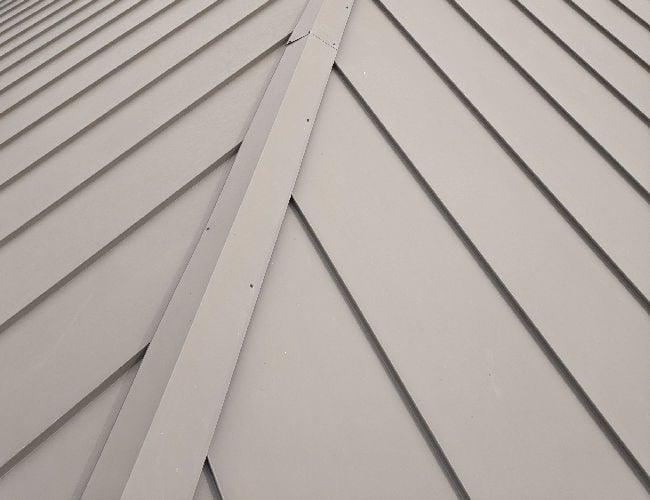

A standing seam metal roof is a type of hidden fastener roofing system characterized by its distinctive raised seams that run vertically along the roof’s surface.

These seams are formed by folding and interlocking adjacent panels, creating a continuous and watertight connection. The result is a sleek and modern appearance that enhances the overall aesthetic appeal of a structure.

This design, combined with the interlocking panels, provides superior protection against leaks and water damage, making standing seam metal roofs highly reliable in regions with heavy rainfall or snowfall.

Pros of Standing Seam Metal Roofing

With their sleek design, exceptional durability, and energy efficiency, these roofing systems offer a range of benefits.

  • Long Lifespan – Standing seam metal roofs have an impressive lifespan, often lasting 40 to 70 years or more with proper installation and maintenance. This longevity surpasses that of traditional roofing materials, such as asphalt shingles, which may require replacement every 15 to 30 years.
  • Protection Against Weather Elements and Conditions – Standing seam metal roofs are designed to withstand harsh weather conditions, including high winds, heavy rain, and snow. The standing seam design features raised seams that interlock tightly, providing excellent protection against water infiltration. The vertical seams run continuously from the ridge to the eaves, preventing water from seeping through the roof surface.
  • Allows Thermal Movement – During temperature changes, standing seam panels expand or contract as necessary, reducing oil canning, fastener withdrawal, and other common roofing issues.

Cons of Standing Seam Metal Roofing

Like any roofing option, standing seam metal roofs also have their drawbacks.

  • Higher Cost: Standing seam metal roofs are typically more expensive to install compared to other metal roofing options. The interlocking design, specialized installation techniques, and quality materials contribute to the higher cost. However, it’s important to consider the long-term durability and low maintenance requirements that can offset the initial investment.
  • Limited Design Flexibility: While standing seam metal roofing offers some customization options, they may have some limitations in terms of complex roof designs or architectural styles that require curved or rounded roofing elements. The straight, linear nature of standing seam panels may not be suitable for every architectural concept.
  • Accessibility for Repairs: In case of any necessary repairs or maintenance, accessing the roof can be more challenging with a standing seam system compared to other types of metal roofing. The vertical seams and interlocking design may require more effort and expertise to disassemble and reassemble during repairs or modifications.

Types of Standing Seam Metal Roofing Panels

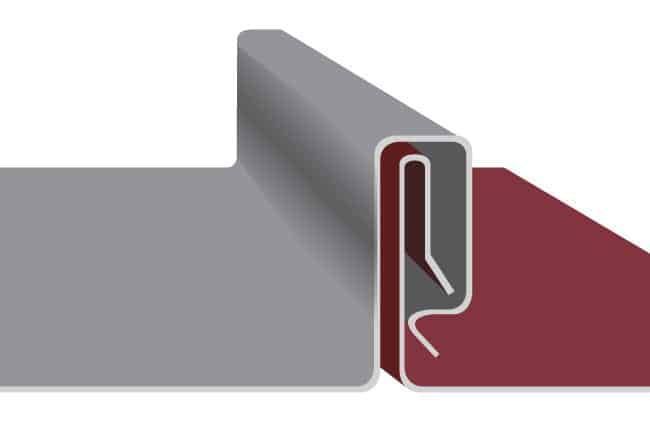

1. Snap-Lock

The snap-lock metal roofing system is a type of standing seam metal roof that features a straightforward and efficient installation method. The panels used in this system have specially designed edges that interlock with adjacent panels. During installation, the panels are aligned and simply snapped into place, securing them tightly together. No additional tools or fasteners are required for the installation process.

Snap-lock metal roofs offer a clean and streamlined appearance, with no visible fasteners on the surface, enhancing the overall aesthetic appeal of the structure.

Standing seam metal roofs with snap-lock panels offer a more appealing system because the fasteners are not visible on the surface.

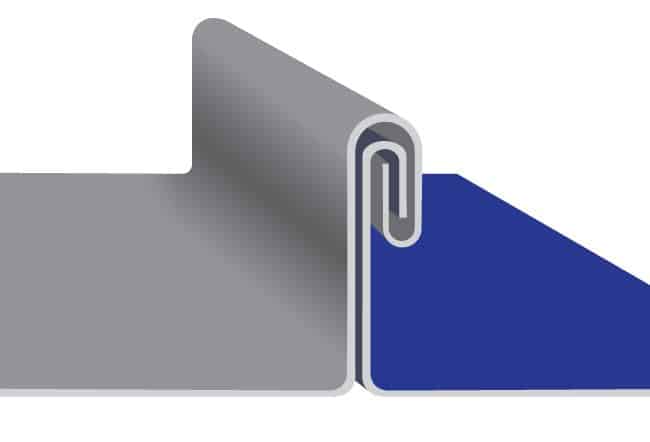

2. Mechanically Seamed

The mechanically seamed metal roofing system, also known as a double-lock or field-locked system, is another type of standing seam metal roof that offers exceptional weather resistance and durability.

In this system, the panels are joined together by a mechanical seaming process using specialized seaming tools.

This mechanical seaming process forms a watertight and secure connection that prevents water penetration even in extreme weather conditions.

The double lock also adds strength to the roof, making it highly resistant to wind uplift and ensuring long-lasting performance.

Mechanically seamed metal roofs are commonly used in commercial and industrial applications where superior weather resistance and longevity are paramount.

Standing seam metal roofs with mechanical or double-lock system offer durability and weather resistance.

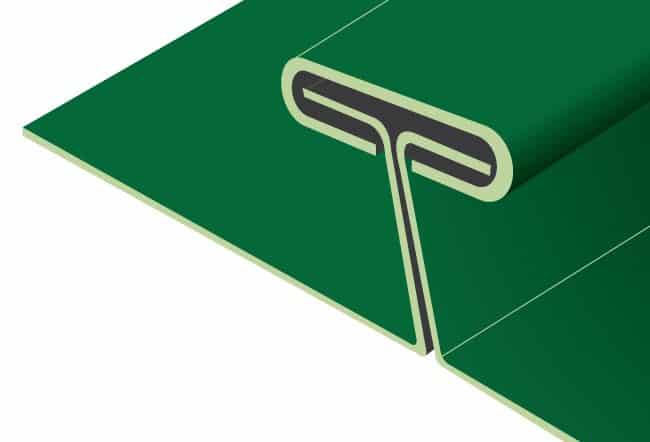

3. Batten Lock

The batten lock metal roofing system is a variant of the standing seam metal roof that incorporates a unique batten or clip system. In this system, metal panels are installed on the roof’s surface and secured using metal battens or clips that are fastened to the roof deck.

The battens or clips create a raised profile that elevates the panels above the roof’s surface.

This design not only provides an enhanced aesthetic appeal but also allows for improved airflow and ventilation beneath the panels, contributing to the roof’s overall performance.

Standing seam metal roofs with batten lock panels include a system of battens or clips that are fastened to the roof deck.

Different Attachment Methods

Standing seam metal roofs in Fort Wayne, IN can be attached using two main methods, each offering distinct advantages and characteristics.

1. Fastening Flange

Fastening flags, also known as fastening flanges or fastening strips, are strips of metal that are integral to the standing seam panel design. These strips run along the edges of the panels and provide a secure attachment point.

During installation, adjacent panels are aligned, and the fastening flags are folded or crimped together, typically using a specialized seaming tool.

This creates a tight and watertight connection, ensuring the panels remain securely in place. Fastening flanges offer a streamlined appearance, as there are no visible fasteners on the roof’s surface.

2. Clip

Clips are metal components specifically designed for attaching standing seam metal panels to the roof deck.

These clips are fastened to the roof deck, providing a secure base for the panels to be attached. The panels are then positioned over the clips, which help hold them in place.

Clips allow for thermal movement of the metal panels, accommodating expansion and contraction without compromising the roof’s integrity.

They also provide flexibility during installation, as the panels can be easily adjusted or replaced if needed. Clips are commonly used in mechanically seamed systems, batten lock systems, and some snap-lock systems.

FAQs About Standing Seam Metal Roofs

Installing a standing seam metal roof system can be a worthwhile investment for many homeowners and building owners. Consulting with roofing professionals can provide valuable insights and help you make an informed decision.

In many cases, installing a standing seam metal roof over existing shingles is possible. This method is known as a “roof-over” or “retrofit” installation. It is advisable to consult with a qualified roofing professional who can assess your specific situation and provide guidance on whether installing a standing seam metal roof over shingles is a viable option for your project.

Standing seam metal roofs are known for their low maintenance requirements. However, some routine maintenance practices can help ensure the longevity and performance of the roof including inspections and cleaning. Regular inspections and basic preventive maintenance can help identify and address any issues early on, ensuring the roof’s longevity and optimal performance.

Opt for a High-Quality Roof Construction for Your Home

Whether you’re captivated by their modern aesthetics, interested in their unmatched durability, or intrigued by their environmental advantages, standing seam metal roofs stand tall as an exceptional choice.

Standing seam metal roofs offer a long-lasting, visually striking, and sustainable roofing solution. Give us a call to unlock the hidden potential of your roof.
